Requires Behavior Designer.
The Formations Pack contains 14 behavior tree tasks focused on group formations. Agents can join and leave a formation at any time and the formation dynamically responds to the change.
🧭Pathfinding support
- Unity’s NavMesh system
- A* Pathfinding Project by Aron Granberg
🤝Integrations
- Ultimate Character Controller — formation movement driven by Mecanim root motion
- Deathmatch AI Kit
Using Behavior Designer Pro? See the Formations Pack for Behavior Designer Pro.
Included tasks
-
Line:
Arranges the group in a straight horizontal line.
-
Row:
Arranges the group in one or more rows, with the row significantly wider than the length of the column.
-
Column:
Arranges the group in one or more columns, with the column significantly longer than the width of the rows.
-
Echelon:
Arranges the group in a diagonal formation.
-
Skirmisher:
Arranges the group in a randomly spread out line.
-
V:
Arranges the group in a V shape with the leader at the back.
-

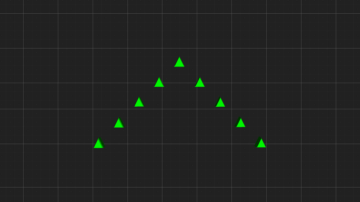

Wedge:
Arranges the group in an upside-down V with the leader at the front.
-
Diamond:
Arranges the group in a tactical diamond shape.
-
Triangle:
Arranges the group in a triangle.
-
Square:
Arranges the group in a square.
-

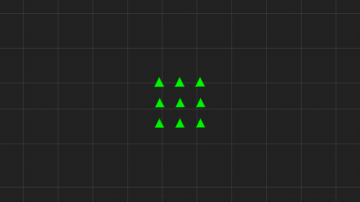

Grid:
Arranges the group in a grid where the number of rows equals the number of columns.
-

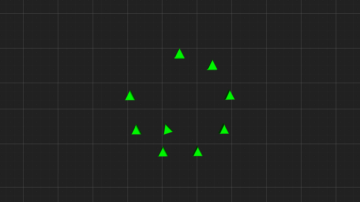

Circle:
Arranges the group in a circle.
-
Arc:
Arranges the group in an arc.
-
Swarm:
Arranges the group in a tight circle that can move together.
